The ZPMC reach stacker 45 ton is equipped with advanced technology, including a powerful engine and hydraulic system, ensuring smooth operation even under the most demanding conditions. The comfortable and ergonomic cab provides excellent visibility, making it easy to navigate and maneuver your way around tight spaces.

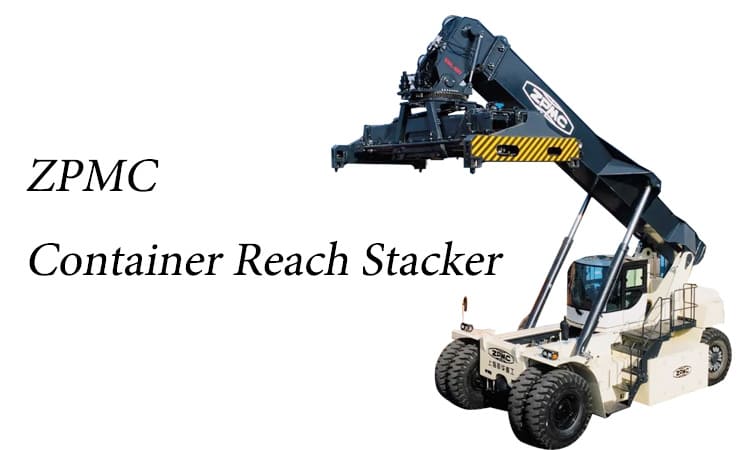

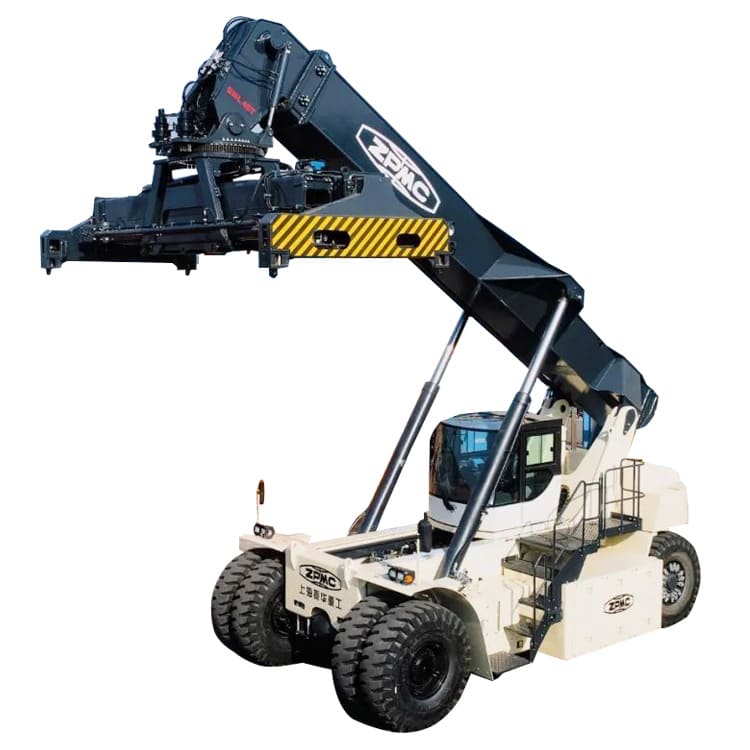

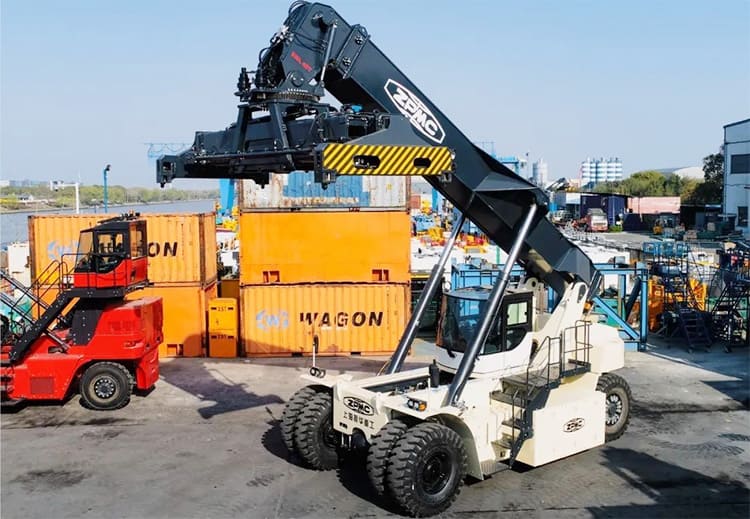

ZPMC reach stacker 45 ton – the ultimate solution for your heavy lifting needs!
Built with precision and durability in mind, this ZPMC reach stacker 45 ton boasts a maximum lifting capacity of 45 tons, allowing you to effortlessly move large containers and other heavy loads. Whether you're working at the port, warehouse, or construction site, this machine will help you get the job done quickly and efficiently.
ZPMC Reach Stacker 45 Ton for Sale in Namibia
ZPMC Reach Stacker 45 Ton for Sale in Namibia
ZPMC Reach Stacker 45 Ton for Sale in Namibia

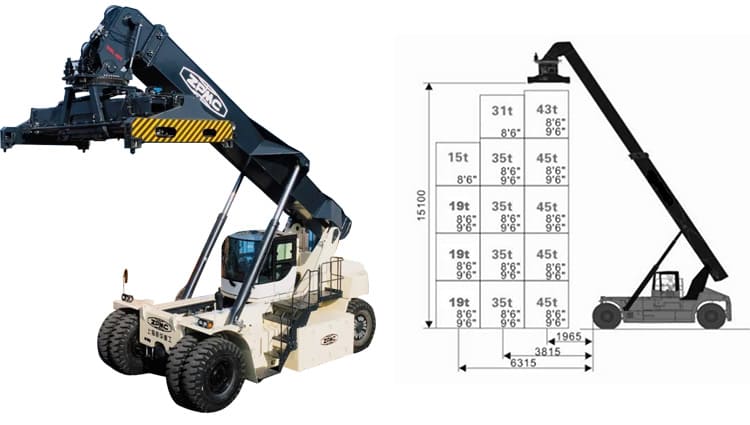

Lifting capacity: Max 45tons
Max. Lifting height: 15100 mm
Boom angle: 0-60°
Min. ground clearance: 320 mm
Min. turning radius: 8000 mm
Tread (front wheel/rear wheel): 3030/2790 mm
Wheelbase: 6000 mm
Dimension (length × width × height): 11258 × 6042 × 4770 mm
Dead weight: 72 t
Engine: Cummins QSM11
Power rating: 250KW at 2100 rpm
Torque rating: 1785 Nm at 1260 rpm
Transmission: DANA CLARK 14.5HR36432 4 gears
fwd/ 4 rev
Fully automatic transmission
Drive axle: Kessler D102 PL341 with wet disc
brakes
Spreader: ZPMC SPREADER
Tyres: 18.00×25 / 40 PR, Advance (Guizhou)
Colour: AS Customer’s request
