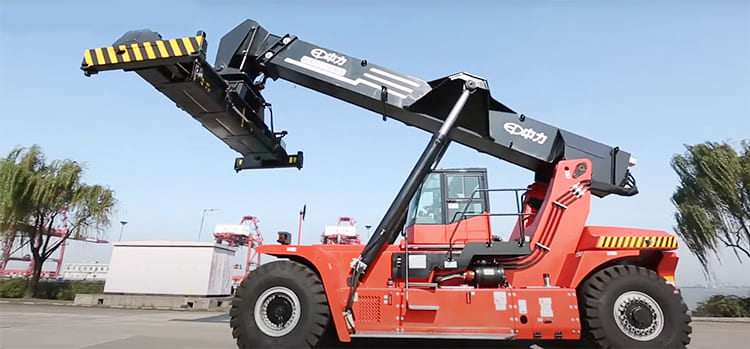

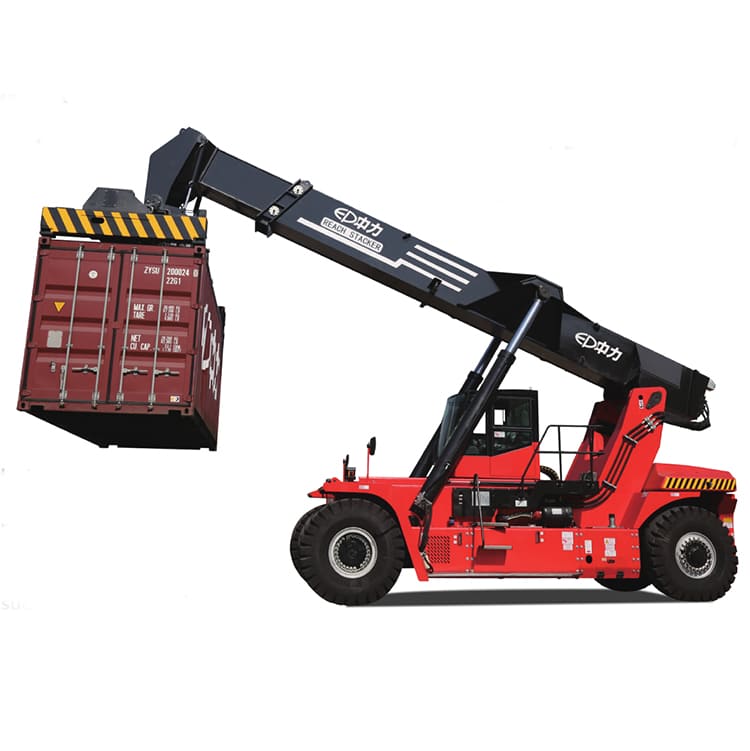

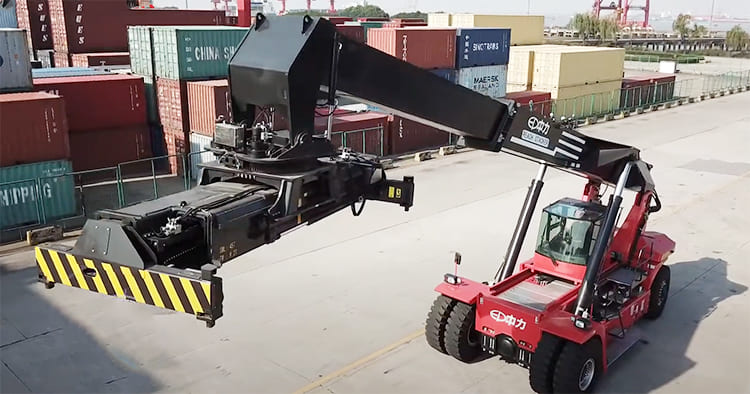

EP stacker reach 45 ton is specifically designed for 20ft and 40ft containers, mainly used in small or mid-size ports, intermodal terminals, to transfer and stack various containers and other materials.
EP stacker reach 45 ton is specifically designed for 20ft and 40ft containers, mainly used in small or mid-size ports, intermodal terminals, to transfer and stack various containers and other materials.
Compare with forklift, the EP stacker reach 45 ton has more advantage in above application such as: more flexible, easier to operate, more stable, lower tyre pressure, higher stacking and storage capacity etc. It can also be operated across over containers.
EP Stacker Reach 45 Ton for Sale in Zimbabwe
EP Stacker Reach 45 Ton for Sale in Zimbabwe
EP Stacker Reach 45 Ton for Sale in Zimbabwe
EP Stacker Reach 45 Ton for Sale in Zimbabwe
Manufacturer: EP
Model : designation ZL450-Atype45t(standard) ZL450type45t
Operator type: Seated type
load capacity at load centre distance c1 Q (t): 45
load capacity at load centre distance c2 Q (t): 31
load capacity at load centre distance c3 Q (t): 15
Wheelbase y (mm): 6000
Service weight kg: 72000
Tyre type: rubber
Tyre size: front 1670X515
Tyre size: rear 1670X515
Wheels, number front/ rear (x=drive wheels): 4
Height, mast lowered h (mm): 4660
Engine manufacturer: VOLVO CUMMINS
Engine power according to ISO : 1585 kW 265 179
Rated speed min: 2200
Number of cylinders/displacement (‒)/(cm3): 6
Vehicle electrical system: voltage V 24

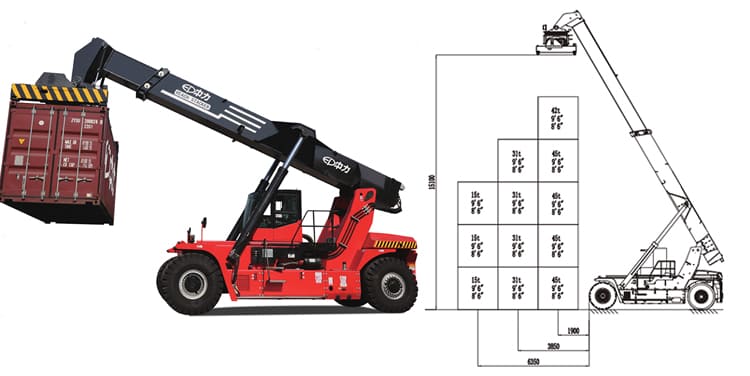

Size of containers feet (´):' 20' 40'
7.4 Side thrust mm ±800 ±800
Tilt ° :±4
Hydraulic oil tank capacity ℓ : 800
Fuel tank capacity ℓ : 750
