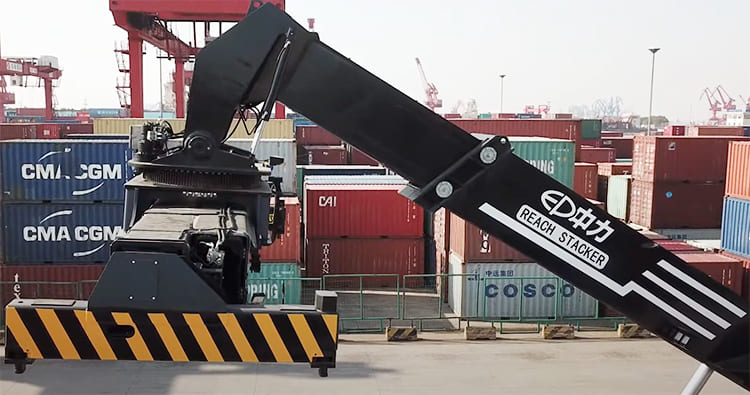

The intelligent controller monitors the boom' s parameters at real-time, and automatically adjust the position of the boom to ensure vertical lifting of the spreader, which makes EP Reach Stacker ZL450-A stacking safer and improves efficiency significantly.

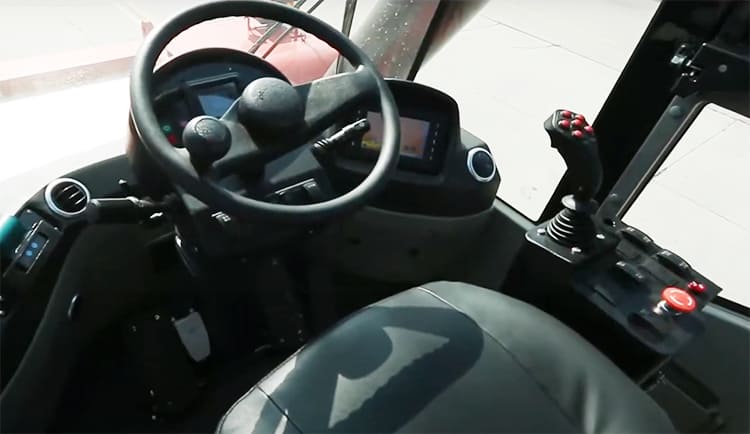

The operator-oriented design of EP Reach Stacker ZL450-A includes a broad view of work condition. The controlling devices are placed in reasonable position to ease fatigue of operators.
Automatically adjust the pump displacement according to the load, realizing high precision flow control. The effect of EP Reach Stacker ZL450-Aenergy saving and consumption reduction are remarkable.
EP Reach Stacker Zl450-A | Best 45 Ton Reach Stacker Cost
EP Reach Stacker Zl450-A | Best 45 Ton Reach Stacker Cost
EP Reach Stacker Zl450-A | Best 45 Ton Reach Stacker Cost
EP Reach Stacker Zl450-A | Best 45 Ton Reach Stacker Cost
Manufacturer: EP
Model : designation ZL450-Atype45t(standard) ZL450type45t
Operator type: Seated type
load capacity at load centre distance c1 Q (t): 45
load capacity at load centre distance c2 Q (t): 31
load capacity at load centre distance c3 Q (t): 15

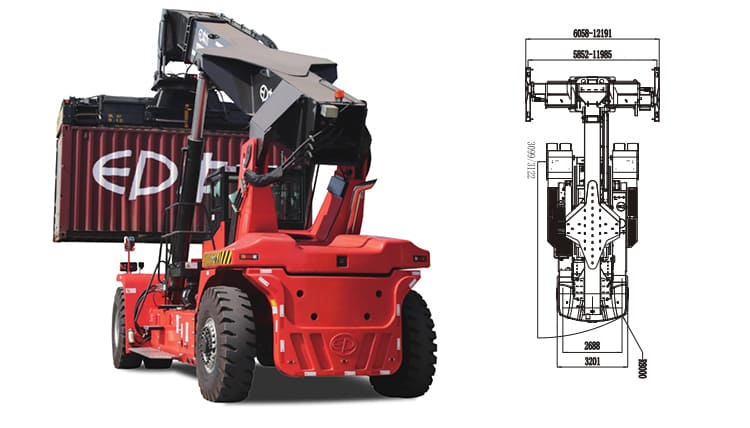

Wheelbase y (mm): 6000
Service weight kg: 72000
Tyre type: rubber
Tyre size: front 1670X515
Tyre size: rear 1670X515
Wheels, number front/ rear (x=drive wheels): 4
Height, mast lowered h (mm): 4660
Engine manufacturer: VOLVO CUMMINS
Engine power according to ISO : 1585 kW 265 179
Rated speed min: 2200
Number of cylinders/displacement (‒)/(cm3): 6
Vehicle electrical system: voltage V 24
Size of containers feet (´):' 20' 40'
7.4 Side thrust mm ±800 ±800
Tilt ° :±4
Hydraulic oil tank capacity ℓ : 800
Fuel tank capacity ℓ : 750
