Designed with precision engineering and advanced technology, the SMV Reach Stacker 4531 is a powerful and reliable machine that delivers unbeatable performance in any industrial or commercial environment.
With its superior lifting capacity of up to 45 tonnes and extended reach of up to 16 meters, this SMV Reach Stacker 4531 is perfect for handling heavy loads and stacking containers with ease.
One of the key features of the SMV Reach Stacker 4531 is its ergonomic design, which ensures maximum operator comfort and safety during operation. The spacious and air-conditioned cab provides excellent visibility and reduces operator fatigue, while the intuitive control system allows for easy and precise handling of loads.

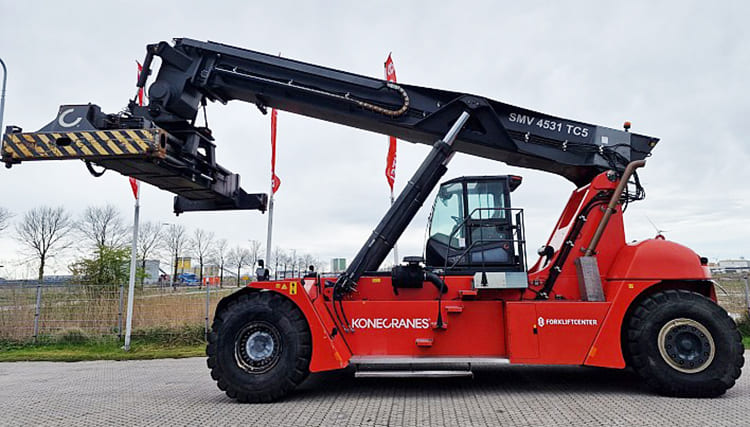

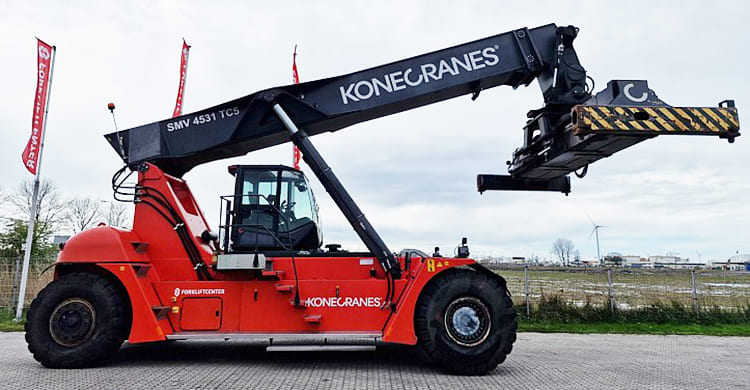

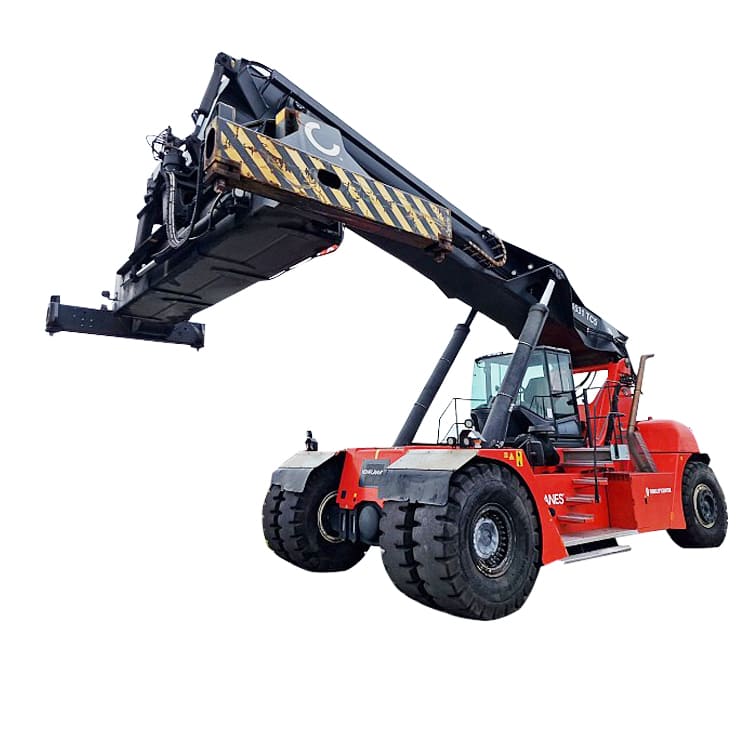

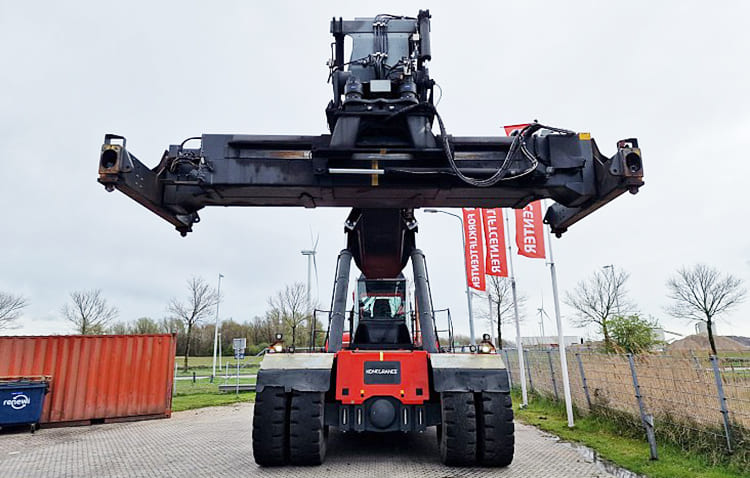

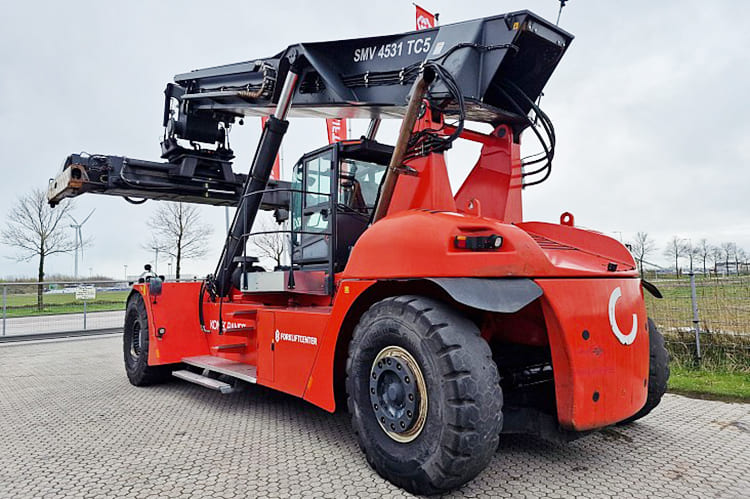

Konecrane Reach Stacker For Sale | SMV Reach Stacker 4531
Konecrane Reach Stacker For Sale | SMV Reach Stacker 4531
Konecrane Reach Stacker For Sale | SMV Reach Stacker 4531
Konecrane Reach Stacker For Sale | SMV Reach Stacker 4531
Nominal load at COG: 45 t
Standard tyres: 4x2
Centre of gravity: 2000 mm
Transmission type: W
Max. Reach horizontal: 6.35 m
Weight: 71.8 t
Total width: 6050 mm
Construction height: 4500 mm
Lifting height: 15.3 m
Travel speed with / without load: 22/25 km/h
Turning radius: 10 m
Wheel base: 6.4 m
Engine manuf.: Volvo
Engine type: TAD1171VE
Engine power: 265 kW
Displacement: 10.84 l
Revolutions at max torque: 2100 rpm
Max. torque: 1785 Nm
No. of cylinders: 6
Emission level: IV
